mkdir /opt/unetlab/addons/qemu/fortinet-FGT-v7.2.11-build1740/

cd /opt/unetlab/addons/qemu/fortinet-FGT-v7.2.11-build1740/

unzip FGT_VM64_KVM-v7.2.11.M-build1740-FORTINET.out.kvm.zip

mv fortios.qcow2 virtioa.qcow2

rm FGT_VM64_KVM-v7.2.11.M-build1740-FORTINET.out.kvm.zip

/opt/unetlab/wrappers/unl_wrapper -a fixpermissions

System is starting...
Starting system maintenance...
Scanning /dev/vda1... (100%)
Scanning /dev/vda2... (100%)
The config file may contain errors.
Please see details by the command 'diagnose debug config-error-log read'.
Serial number is FGVMEV0IGQHQ4A2F

FortiGate-4400F login: admin
Password:
You are forced to change your password. Please input a new password.
New Password:
Confirm Password:

FortiGate-VM64-KVM # get sys stat
Version: FortiGate-VM64-KVM v7.2.11,build1740,250210 (GA.M)
Security Level: High
Firmware Signature: certified
Virus-DB: 1.00000(2018-04-09 18:07)
Extended DB: 1.00000(2018-04-09 18:07)
Extreme DB: 1.00000(2018-04-09 18:07)
AV AI/ML Model: 0.00000(2001-01-01 00:00)
IPS-DB: 6.00741(2015-12-01 02:30)
IPS-ETDB: 6.00741(2015-12-01 02:30)
APP-DB: 6.00741(2015-12-01 02:30)
FMWP-DB: 0.00000(2001-01-01 00:00)
INDUSTRIAL-DB: 6.00741(2015-12-01 02:30)
IPS Malicious URL Database: 1.00001(2015-01-01 01:01)
IoT-Detect: 0.00000(2022-08-17 17:31)
Serial-Number: FGVMEV0IGQHQ4A2F
License Status: Invalid
VM Resources: 1 CPU/1 allowed, 984 MB RAM/2048 MB allowed
Log hard disk: Not available
Hostname: FortiGate-VM64-KVM
Operation Mode: NAT
Current virtual domain: root
Max number of virtual domains: 2
Virtual domains status: 1 in NAT mode, 0 in TP mode
Virtual domain configuration: disable
FIPS-CC mode: disable
Current HA mode: standalone
Branch point: 1740
Release Version Information: GA
FortiOS x86-64: Yes
System time: Thu Mar 20 02:30:02 2025
Last reboot reason: power cycle

FortiGate-VM64-KVM #
FortiGate-VM64-KVM #
FortiGate-VM64-KVM # conf sys int

FortiGate-VM64-KVM (interface) # edit
name    Name.
fortilink   static   0.0.0.0 0.0.0.0  10.255.1.1 255.255.255.0  up   disable   aggregate
l2t.root   static   0.0.0.0 0.0.0.0  0.0.0.0 0.0.0.0  up   disable   tunnel
naf.root   static   0.0.0.0 0.0.0.0  0.0.0.0 0.0.0.0  up   disable   tunnel
port1   dhcp   0.0.0.0 0.0.0.0  192.168.56.135 255.255.255.0  up   disable   physical
port2   static   0.0.0.0 0.0.0.0  0.0.0.0 0.0.0.0  up   disable   physical
port3   static   0.0.0.0 0.0.0.0  0.0.0.0 0.0.0.0  up   disable   physical
port4   static   0.0.0.0 0.0.0.0  0.0.0.0 0.0.0.0  up   disable   physical
ssl.root   static   0.0.0.0 0.0.0.0  0.0.0.0 0.0.0.0  up   disable   tunnel

FGVMEV0IGQHQ4A2F login: admin
Password:
Verifying password...

Welcome!

FGVMEV0IGQHQ4A2F #
FGVMEV0IGQHQ4A2F # get system status
Version: FortiGate-VM64-KVM v7.2.11,build1740,250210 (GA.M)
Security Level: High
Firmware Signature: certified
Virus-DB: 1.00000(2018-04-09 18:07)
Extended DB: 1.00000(2018-04-09 18:07)
Extreme DB: 1.00000(2018-04-09 18:07)
AV AI/ML Model: 0.00000(2001-01-01 00:00)
IPS-DB: 6.00741(2015-12-01 02:30)
IPS-ETDB: 6.00741(2015-12-01 02:30)
APP-DB: 6.00741(2015-12-01 02:30)
FMWP-DB: 0.00000(2001-01-01 00:00)
INDUSTRIAL-DB: 6.00741(2015-12-01 02:30)
IPS Malicious URL Database: 1.00001(2015-01-01 01:01)
IoT-Detect: 0.00000(2022-08-17 17:31)
Serial-Number: FGVMEV0IGQHQ4A2F
License Status: Valid
VM Resources: 1 CPU/1 allowed, 984 MB RAM/2048 MB allowed
Log hard disk: Not available
Hostname: FGVMEV0IGQHQ4A2F
Operation Mode: NAT
Current virtual domain: root
Max number of virtual domains: 2
Virtual domains status: 1 in NAT mode, 0 in TP mode
Virtual domain configuration: disable
FIPS-CC mode: disable
Current HA mode: standalone
Branch point: 1740
Release Version Information: GA
FortiOS x86-64: Yes
System time: Wed Mar 19 23:33:22 2025
Last reboot reason: warm reboot

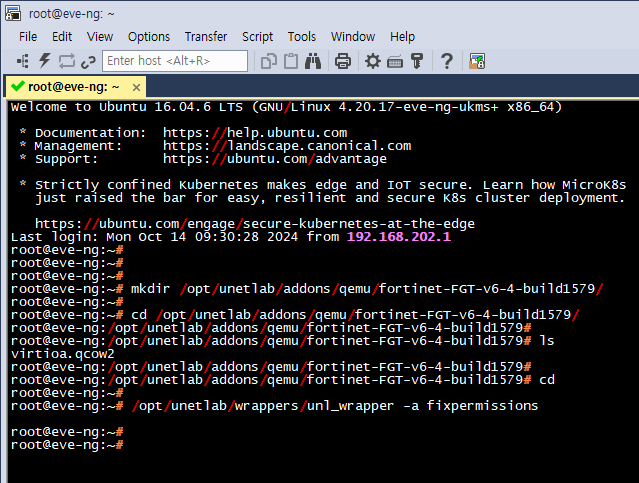

1. 디렉토리 생성

mkdir /opt/unetlab/addons/qemu/fortinet-FGT-v6-4-build1579/

2. 이미지 업로드

3. 권한 수정

/opt/unetlab/wrappers/unl_wrapper -a fixpermissions

*ATTENTION*: Admin sessions removed because license registration status changed to 'INVALID' 발생 시

■ NTP 동기화 비활성화 후 reboot

config system ntp
set ntpsync disable
set type custom
end

execute reboot

GUI 접속 확인

eve-ng 사이트 vQFX 설치

mv /opt/unetlab/addons/qemu/vqfxpfe-10K-F-17.4R1.16/cosim_20180212.qcow2 /opt/unetlab/addons/qemu/vqfxpfe-10K-F-17.4R1.16/hda.qcow2

mv /opt/unetlab/addons/qemu/vqfxre-10K-F-17.4R1.16/jinstall-vqfx-10-f-17.4R1.16.img /opt/unetlab/addons/qemu/vqfxre-10K-F-17.4R1.16/hda.qcow2

1. 디렉토리 생성

- 버전 18.4R1.8
mkdir /opt/unetlab/addons/qemu/vqfxpfe-10-f-18.4R1.8
mkdir /opt/unetlab/addons/qemu/vqfxre-10-f-18.4R1.8
- 버전 17.4R1.16
mkdir /opt/unetlab/addons/qemu/vqfxpfe-10K-F-17.4R1.16
mkdir /opt/unetlab/addons/qemu/vqfxre-10K-F-17.4R1.16

2. 디렉토리에 PFE/RE 이미지 업로드
Upload the downloaded images to the EVE newly created directories using FileZilla or WinSCP.

cosim_20180212.qcow2 --->  /opt/unetlab/addons/qemu/vqfxpfe-10K-F-17.4R1.16
jinstall-vqfx-10-f-17.4R1.16.img --->  /opt/unetlab/addons/qemu/vqfxre-10K-F-17.4R1.16

3. 파일 형식 변경(qcow2)
cd /opt/unetlab/addons/qemu/vqfxpfe-10-f-18.4R1.8/
cp cosim_20180212.qcow2 hda.qcow2

cd /opt/unetlab/addons/qemu/vqfxre-10-f-18.4R1.8/
cp jinstall-vqfx-10-f-18.4R1.8.qcow2 hda.qcow2

4. 권한 수정
cd /opt/unetlab/wrappers/
:/opt/unetlab/wrappers#unl_wrapper -a fixpermissions

================================================

deactivate system syslog user *

delete system login user vagrant

wildcard range delete interfaces xe-0/0/[0-71]
q
wildcard range delete interfaces et-0/0/[0-71]

wildcard delete interfaces xe-0/0/[0-71]
yes

delete interfaces xe-0/0/8:0
delete interfaces xe-0/0/8:1
delete interfaces xe-0/0/8:2
delete interfaces xe-0/0/8:3
delete interfaces xe-0/0/9:0
delete interfaces xe-0/0/9:1
delete interfaces xe-0/0/9:2
delete interfaces xe-0/0/9:3

commit

================================================

vQFX 정상 설치 후 ping 안되는 경우
pfe와 re RAM 할당 조정 필요

pfe : 1024
re : 4096

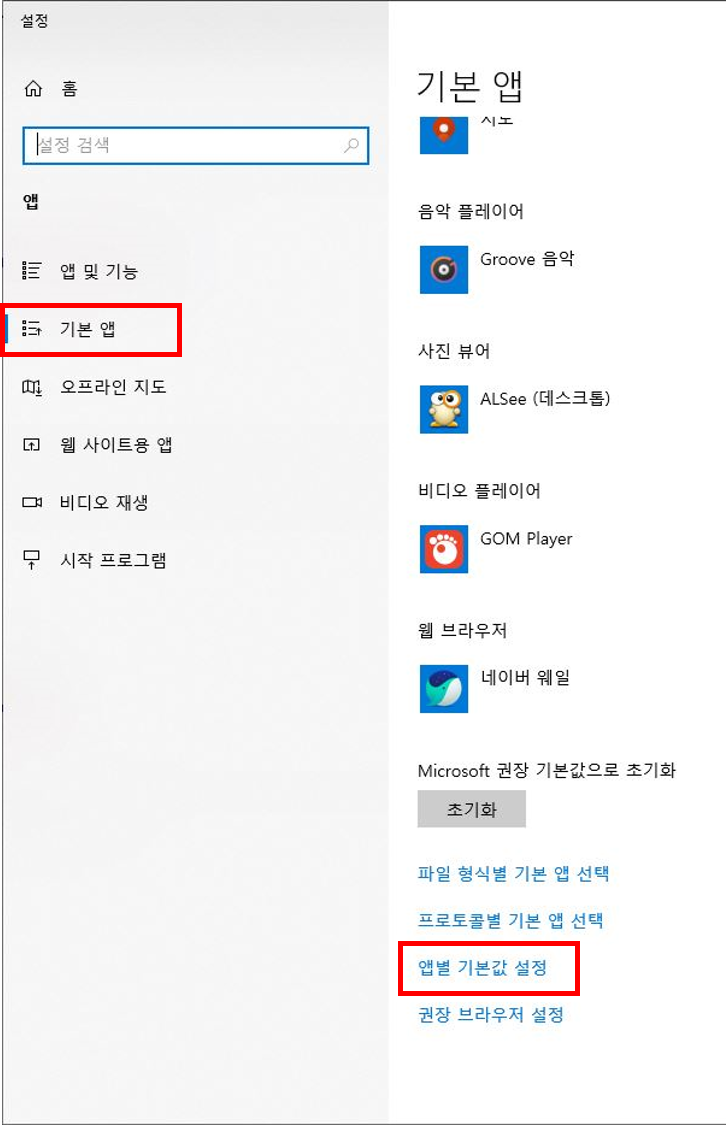

EVE-NG-Win-Client-Pack을 설치해도 image 실행 시 SecureCRT 연동이 안되는 경우 중 하나.

앱의 기본값을 확인해서 SecureCRT가 기본 앱으로 되어있는지 확인.

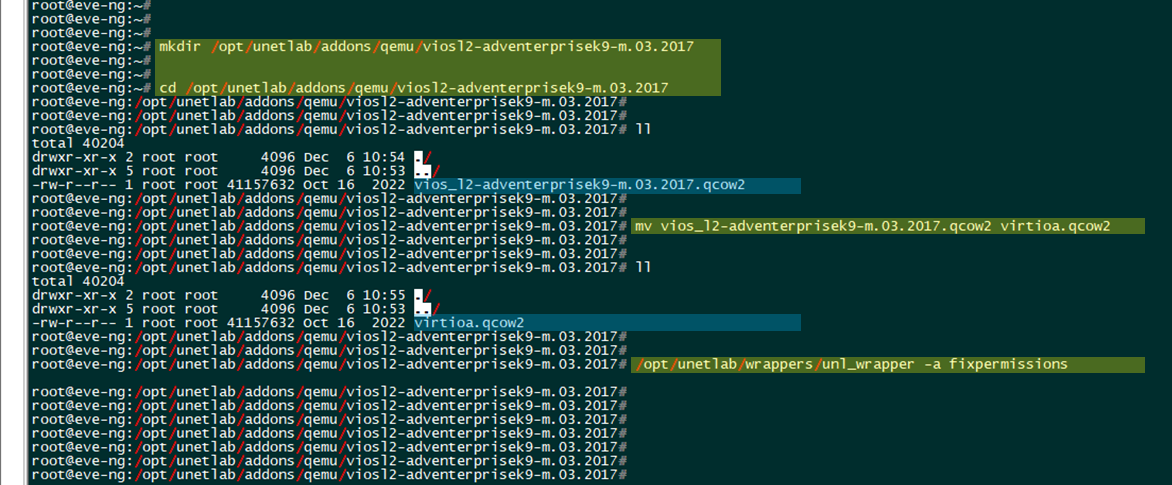

1. 디렉토리 생성

mkdir /opt/unetlab/addons/qemu/viosl2-adventerprisek9-m.03.2017

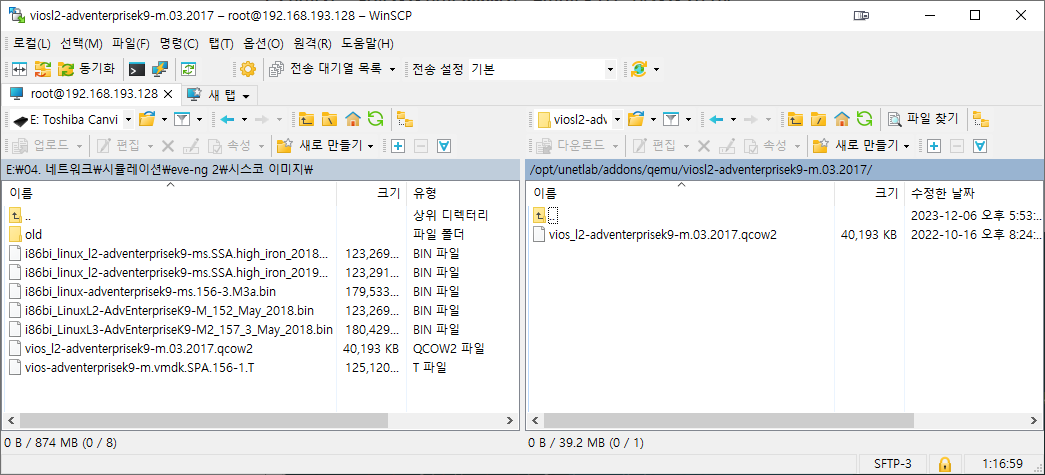

2. FTP로 생성한 폴더에 image 복사

3. 확장자가 이미 qcow2로 되어있으므로 컨버팅은 생략하고 파일명만 변경.
cd /opt/unetlab/addons/qemu/viosl2-adventerprisek9-m.03.2017

mv vios_l2-adventerprisek9-m.03.2017.qcow2 virtioa.qcow2

3. 권한 수정
/opt/unetlab/wrappers/unl_wrapper -a fixpermissions

https://www.eve-ng.net/index.php/documentation/howtos/howto-add-cisco-vios-from-virl/

1. /opt/unetlab/addons/qemu에 디렉토리 생성
mkdir /opt/unetlab/addons/qemu/vios-adventerprisek9-m.SPA.156-1.T

2. FTP로 생성한 디렉토리에 이미지 업로드

3. 디렉토리 이동
cd /opt/unetlab/addons/qemu/vios-adventerprisek9-m.SPA.156-1.T

4. 파일명 변경(.vmdk)
mv vios-adventerprisek9-m.vmdk.SPA.156-1.T vios-adventerprisek9-m.vmdk.SPA.156-1.T.vmdk

5. 파일 형식 변경(vmdk --> qcow2)
5-1
/opt/qemu/bin/qemu-img convert -f vmdk -O qcow2 vios-adventerprisek9-m.vmdk.SPA.156-1.T.vmdk virtioa.qcow2
5-2(5-1번 안될 시)
/opt/qemu/bin/qemu-img convert -O qcow2 vios-adventerprisek9-m.vmdk.SPA.156-1.T.vmdk virtioa.qcow2

6. 원본 파일 삭제
rm vios-adventerprisek9-m.vmdk.SPA.156-1.T.vmdk

7. 권한 수정
/opt/unetlab/wrappers/unl_wrapper -a fixpermissions

0. image: nxosv-final.7.0.3.I7.4.qcow2

1. 폴더 생성

mkdir /opt/unetlab/addons/qemu/nxosv9k-7.0.3.I7.4

2. FTP로 생성한 폴더에 image 복사

3. image 파일명 변경

cd /opt/unetlab/addons/qemu/nxosv9k-7.0.3.I7.4/

mv nxosv-final.7.0.3.I7.4.qcow2 sataa.qcow2

4. 권한 수정
/opt/unetlab/wrappers/unl_wrapper -a fixpermissions

-------------------------------------------------------------------------------

nexus9300v.10.1.2.qcow2

mkdir /opt/unetlab/addons/qemu/nxosv9k-9300v-10.1.2

cd /opt/unetlab/addons/qemu/nxosv9k-9300v-10.1.2/
mv nexus9300v.10.1.2.qcow2 sataa.qcow2

/opt/unetlab/wrappers/unl_wrapper -a fixpermissions

-------------------------------------------------------------------------------

nexus9300v64.10.2.5.M.qcow2

mkdir /opt/unetlab/addons/qemu/nxosv9k-9300v64-10.2.5.M
cd /opt/unetlab/addons/qemu/nxosv9k-9300v64-10.2.5.M/
mv nexus9300v64.10.2.5.M.qcow2 sataa.qcow2

/opt/unetlab/wrappers/unl_wrapper -a fixpermissions

1. 디렉토리 생성

mkdir /opt/unetlab/addons/qemu/xrv-k9-6.1.3

2. FTP로 이미지 업로드 (path: /opt/unetlab/addons/qemu/xrv-k9-6.1.3)

3. 이미지 파일명 변경

cd /opt/unetlab/addons/qemu/xrv-k9-6.1.3

mv iosxrv-k9-demo-6.1.3.qcow2 hda.qcow2

4. 권한 수정

/opt/unetlab/wrappers/unl_wrapper -a fixpermission
